Designed to reduce installation time and cost

An all-in-one transducer unit for measurement of STW (Speed Through Water), SOG (Speed Over Ground), as well as Depth.

Our log systems are designed with a minimalistic approach, reducing the number of parts that have to be installed and reducing the number of necessary modifications to the vessels’ hull.

The sophisticated all-in-one transducer measures all the necessary parameters (Speed Through Water, Speed Over Ground, Depth) through only one (1) hull penetration, which saves time both during installation and occasional maintenance.

For installations that require for example only Speed Through Water (STW), we can offer even smaller, cost-optimized versions as well. Our broad product range makes sure we can find the right setup to meet your demands.

One of our recent additions to the product range is Easy Tank, which is an approved solution that eliminates the need for a sea valve. Read more about Easy Tank further below.

Robust and accurate speed measurements

Our logs send out high-frequency sound waves and record the reflected signals through a transducer. The signals are then processed by a correlation analysis algorithm to achieve a highly accurate result.

We are very proud of the measurement accuracy of our logs, which use high-frequency sound waves and Acoustic Correlation to calculate speed. This measurement technique is very robust and insensitive to interference, allowing for reliable integration with other systems on board that need accurate STW and SOG, like radar, auto-pilot, positioning systems and systems for fuel optimization.

The Acoustic Correlation technique has advantages compared to other solutions on the market. One of the most important advantages is that it is independent of water temperature and salinity. This means that our logs need less calibration and will measure correctly regardless of where in the world the vessels operate.

Our broad product range meets any possible demand

We offer a range of combination log systems as well as pure speed log systems.

Measurement capabilities
SAL R1a
SAL R1E
SAL T2+
SAL T2E
SAL T3
Speed Through Water (STW) STW STW STW STW STW
Bottom Track / Speed Over Ground (SOG) SOG SOG SOG**
Echo Sounder / Depth (DPT) DPT DPT* DPT DPT**

*) SAL T2+ is approved as a secondary source to an external echo sounder system.
**) SAL T3 is approved for STW and SOG or STW and DPT.

Overview

Browse through the illustrations below to see the capabilities and installation principles of the different systems.

In addition to the standard models presented above, we can also provide with other arrangements. Contact us to discuss more!

Quality and tradition

The SAL R1a system, which measures STW (Speed Through Water). The orange transducer is also known as “the Carrot.”

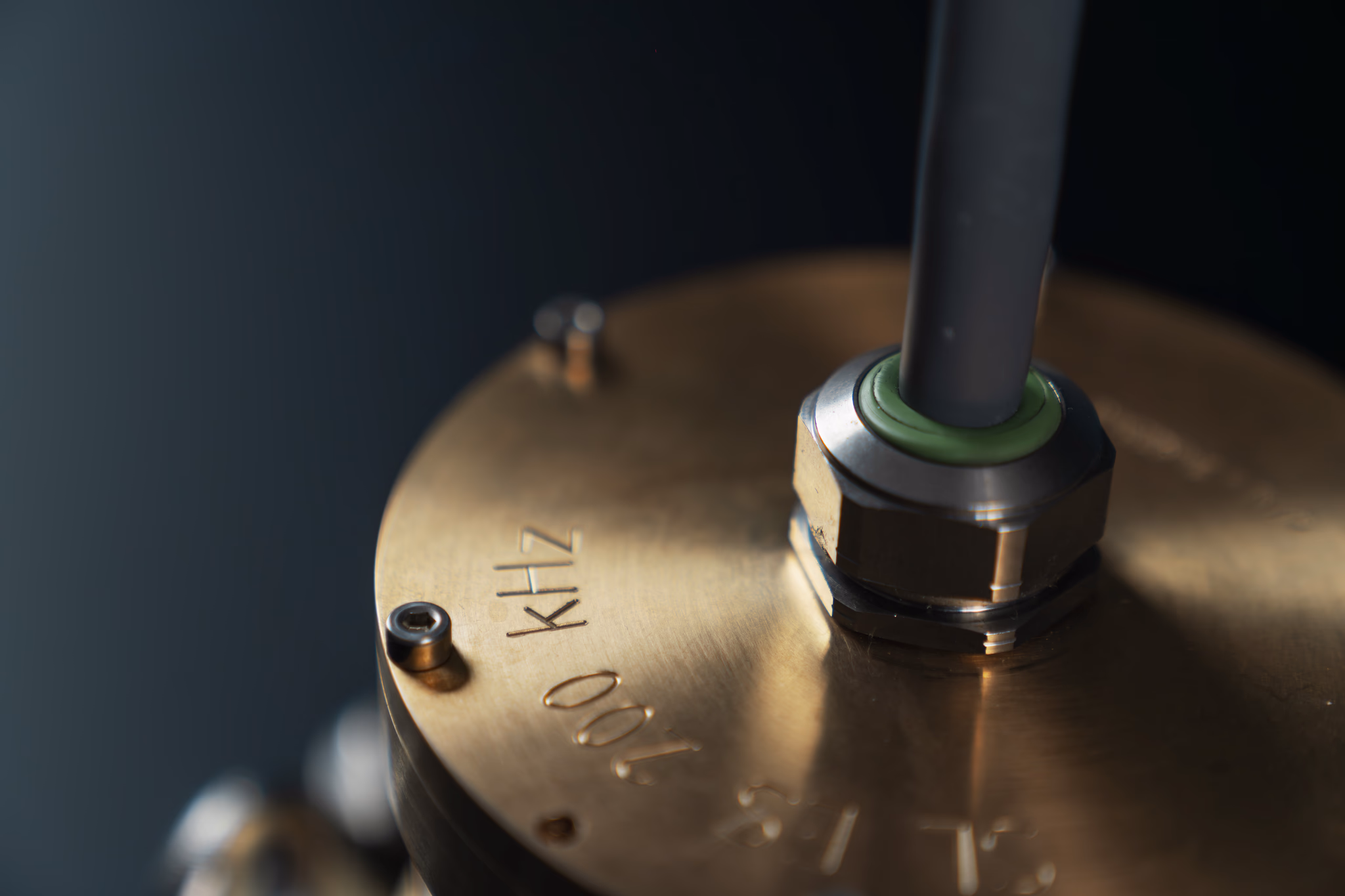

The current design and construction of our logs is the result of decades of research and development, iterations and innovation. We know how important reliability and safety is for our customers, and therefore we control the design and production of all parts, most crucial being the bottom parts, transducers and circuit boards.

Easy Tank – making installation even easier

Easy Tank is an alternative to the sea valve and allows for a cost-efficient and equally safe installation of STW (Speed Through Water) transducers.

Easy Tank is an alternative to the sea valve and allows for a cost-efficient and equally safe installation of STW (Speed Through Water) transducers. The solution is considered a “closed-ended installation” and is approved by DNV.

A closed-ended installation does not require any extra safety precautions considering water integrity, such as a water tight compartment or cable piping up above sea level. It is simply approved completely water tight. The cable of the Easy Tank is also water tight, giving more options and flexibility during installation.

Replacing the transducer is simply done from the inside of the hull while a diver covers the hole from the outside.

This is just how easy it is to install Easy Tank:
